Flight Test Files: Douglas X-3 Stiletto – Conquering the Needle Jet’s Inertia

The Douglas X-3 Stiletto: A Pioneering Aircraft That Shaped Aviation

During the late 1940s and early 1950s, supersonic flight was still a concept that captured the imagination of engineers and pilots alike. The United States Air Force and the National Advisory Committee for Aeronautics (NACA), now known as NASA, were determined to explore the possibilities of flying at speeds beyond Mach 1, even aiming for Mach 2. This ambition led to the development of the Douglas X-3 Stiletto, an experimental aircraft designed to take off, climb to high altitude, maintain a sustained cruise speed of Mach 2, and land on its own power. It also served as a testbed for very short, low-aspect-ratio wings and the use of titanium in aircraft structures.

The X-3 program received approval on June 30, 1949, with a contract to build two prototypes. However, during development, the original engines failed to meet thrust and weight requirements, leading to the installation of lower-thrust Westinghouse J34 turbojets. The first aircraft arrived at Edwards Air Force Base on September 11, 1952, while the second aircraft was never completed, with its parts used as spares.

On October 15, 1952, Douglas test pilot Bill Bridgeman made the first short “hop” of the airplane. During a high-speed taxi test, the plane took off by mistake, flew about a mile, and landed back on the dry lakebed. The first official flight occurred on October 20, lasting about 20 minutes. By December 1953, Bridgeman had made 26 flights, including the hop, but the aircraft was found to be underpowered and difficult to handle. Its takeoff speed was unusually high for its size, and it failed to meet its planned performance.

The X-3’s fastest flight came on July 28, 1953, when it reached Mach 1.208 in a 30-degree dive—far less than the intended Mach 2. After contractor testing ended in December 1953, the aircraft was sent to the US Air Force. Due to its poor performance in testing, the service kept the research program short to better understand its low-aspect-ratio wings.

In July 1954, NACA planned a limited series of research flights with the X-3 to examine longitudinal stability and control, wing and tail loads, and pressure distribution. NACA test pilot Joseph Walker made his first X-3 flight on August 23, 1954. He completed eight more research flights in September and October. Later, the program expanded to include studies on lateral and directional stability. The X-3 was well-suited for this work because most of its mass, engines, fuel, and structure were concentrated in its long, narrow fuselage. Its short, stubby wings meant the airplane was “loaded” along the fuselage rather than across the wings, a design feature shared by many fighter aircraft of the time.

On October 27, 1954, Walker conducted a roll test at Mach 0.92 and 30,000 feet. When he applied an abrupt left roll, the aircraft responded as expected, but it also pitched up about 20 degrees and yawed 16 degrees. The motion lasted several seconds before he regained control. He then set up for another test point. During a dive to Mach 1.154 at 32,356 feet, he again applied an abrupt roll, and this time the aircraft pitched down sharply to –6.7 g, then pitched up to +7 g. It also sideslipped, producing about 2 g of lateral force, although Walker recovered and landed safely.

Post-flight inspection showed the fuselage had reached its structural load limits, and a slightly higher load could have caused structural failure. The phenomenon experienced was later identified as roll coupling—a rolling motion that produces unexpected simultaneous pitching and yawing. Around this period, F-100 fighters were encountering similar events. The X-3 Stiletto flight helped raise awareness of the problem and led to focused research into its causes. After this event, the aircraft was grounded for nearly a year. Walker returned to the X-3 in September 1955 and completed 10 more flights before the final flight on May 23, 1956.

Although the X-3 Stiletto never reached Mach 2 and did not provide sufficient aerodynamic data at that speed, the program contributed significantly to the development of future high-performance aircraft. Data from the X-3 program benefited the F-104, X-15, SR-71, and other advanced aircraft. The wing platform from the X-3 was later adopted for the F-104. It became the first aircraft to use titanium, and all modern commercial and military aircraft now use it. The X-3 also proved valuable in improving tire technology.

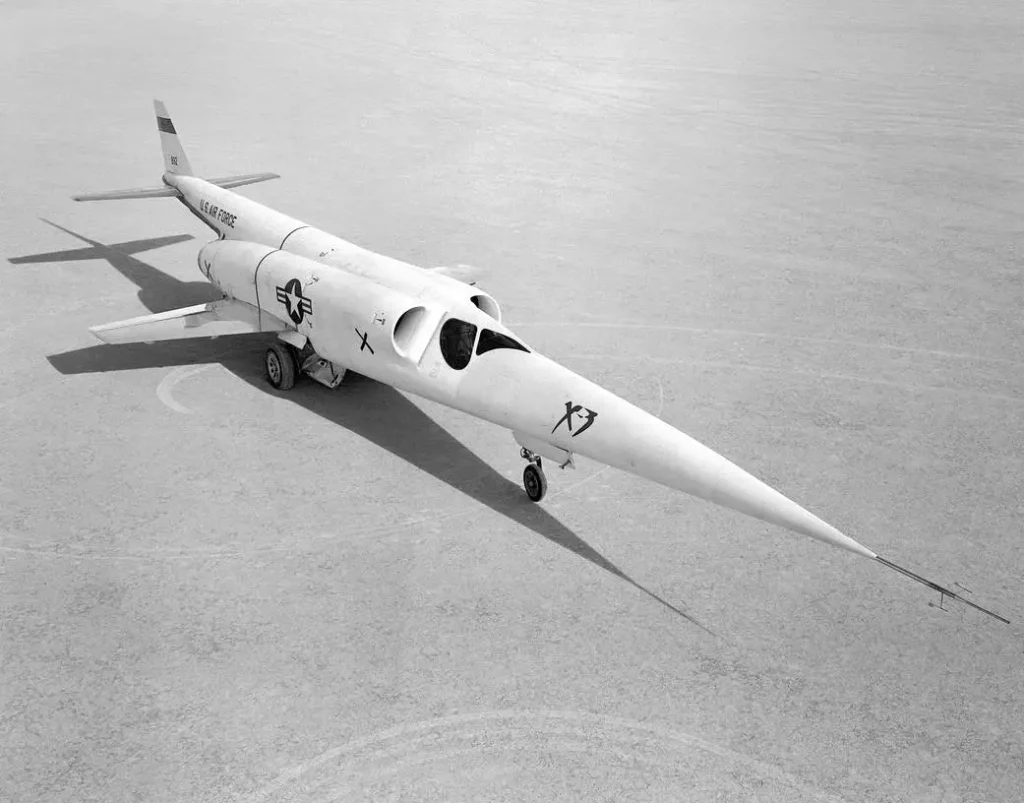

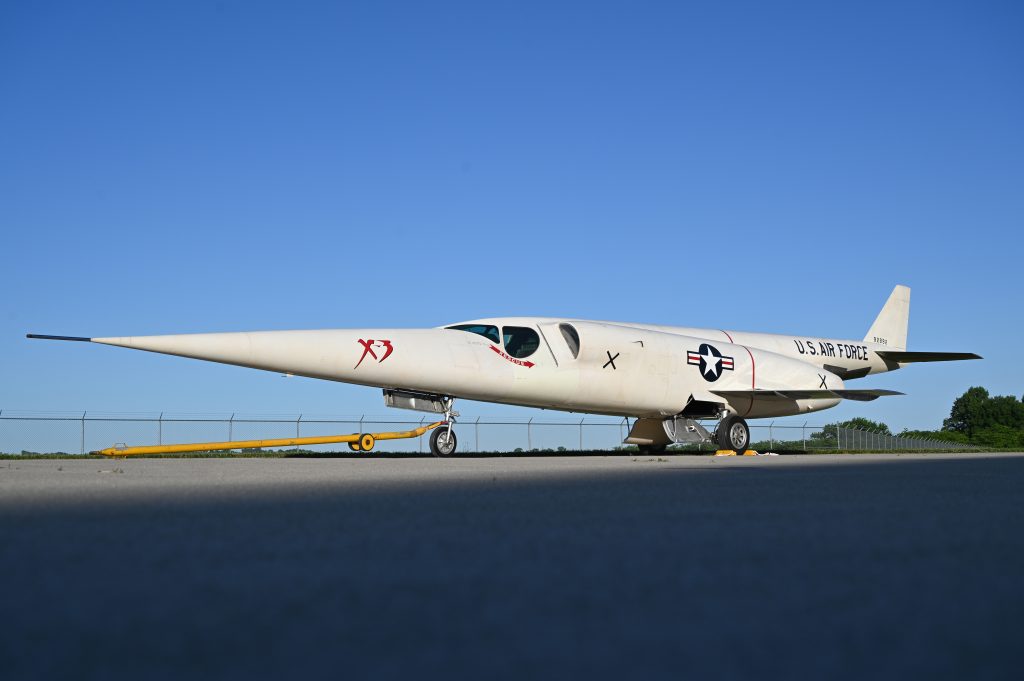

With its unusually sleek body, a length of 66 feet, and a wingspan of nearly 23 feet, the X-3 Stiletto did not achieve its intended result but provided far more valuable data that is still useful today. In the Flight Test Files series, the X-3 Stiletto, like many other aircraft, reshaped aviation as we know it today.
